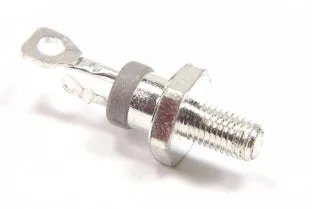

MS Power MSKP Series Stud Mount Thyristor(SCR)

Features

• Full blocking capability over wide temperature range
• Hermetic metal case with glass insulator
• Threaded stud

Applications

• Power Supplies
• Controlled Rectifiers
• AC Switch
• DC Motor Control

Specification

MS Power Part Number	MSKP30S16M
Vrrm	1600V
SCR Configuration	Anode Stud
IF(av) @ 100 Deg C	47 Amp
IF(av) @ 125 Deg C	30 Amp
Itsm	550 Amp
VF(to)	0.95V
I(gt)	150mA
Tj(max)	125°C
rF	6.40mΩ
Termination Style (No Tail)	4mm & 1.3mm Solder Tab
Termination Style (Stud)	M6 x 1
Tail Length to Stud	N/A
R th(j-c)	0.93°C/W
R th(c-h)	0.30°C/W
Weight	15g
Mounting Torque	2 Nm
Factory Pack Qty	10
Country Of Origin	China
MS Power Headquarters	Germany

Datasheet

Obsolescence

This part is, Obsolete due to part number change see for replacement
