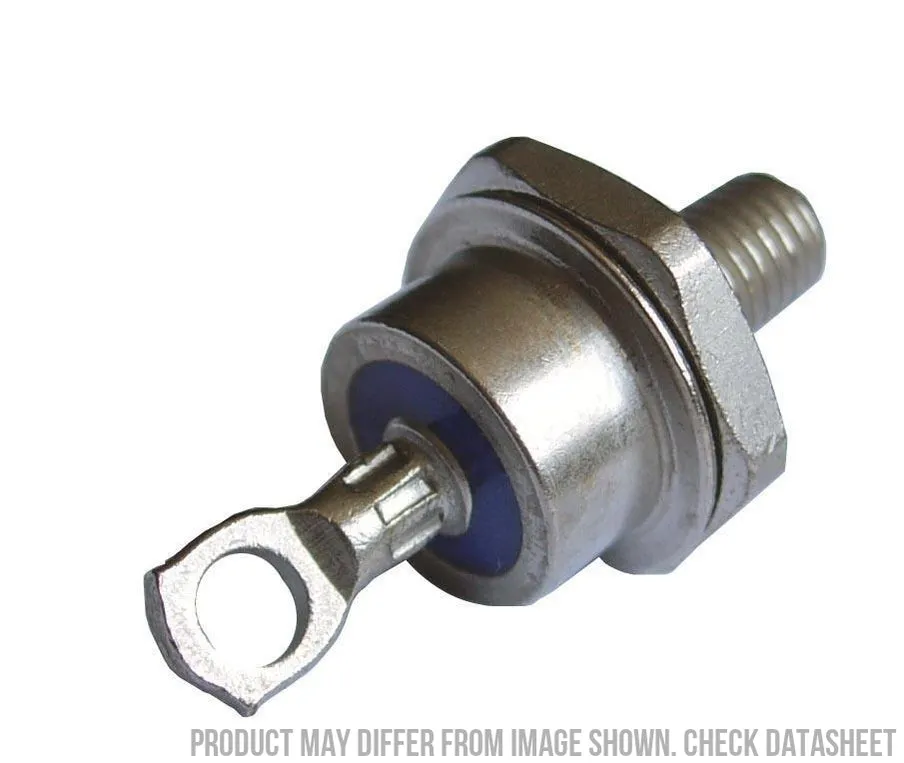

MS Power MSZPA36N10U Series Stud Mount Avalanche Diode

Features

• Full blocking capability over wide temperature range
• Hermetic metal case with glass insulator
• Threaded stud

Applications

• Power Supplies
• Uncontrolled Rectifiers
• Oil Cooled Circuits
• Battery Chargers

Specification

MS Power Part Number	MSZPA36N10U
Vrrm	1600V
Avalanche Diode Configuration	Cathode Stud
IF(av) @ 100 Deg C	57 Amp
IF(av) @ 125 Deg C	36 Amp
Itsm	680 Amp
VF(to)	0.85V
Tj(max)	150°C
rF	10mΩ
Termination Style (No Tail)	2.2mm Solder Tab
Termination Style (Stud)	10 - 32 UNF
Tail Length to Stud	N/A
R th(j-c)	0.085°C/W
R th(c-h)	0.25°C/W
Weight	12g
Mounting Torque	2 Nm
Factory Pack Qty	50
Country Of Origin	China
MS Power Headquarters	Germany

Datasheet

Obsolescence

Thus part is, Obsolete due to part number change see MSDA26N16UB for replacement
